Products

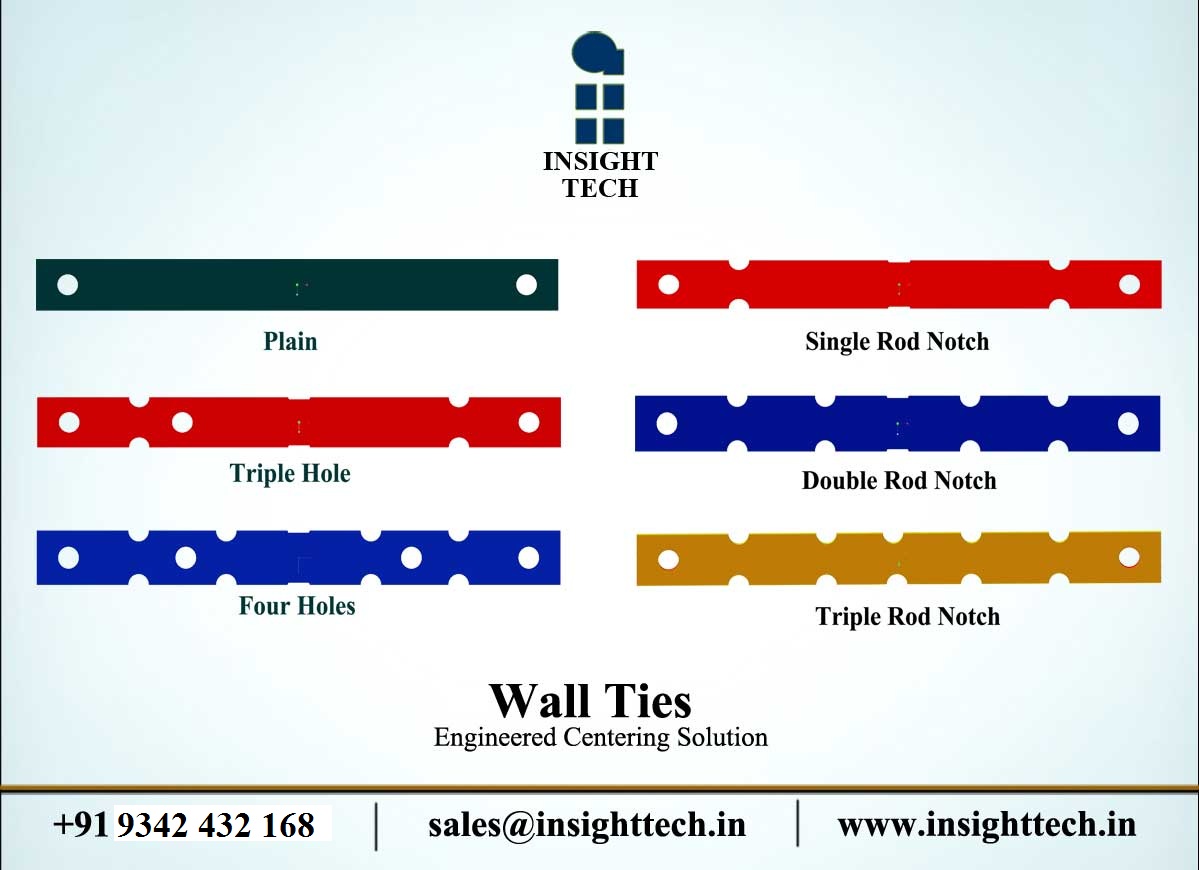

Wall Ties
Wall ties are manufactured to meet the requirements of various pouring methods. They are made of cold rolled steel tested continually to ensure that all of our ties yield a minimum pull strength of 7,200lbs.
Two Hole Wall Ties
Specifications of wall ties:
- 4" Single Notch only
- 6" Single or Double Notch
- 8", 9", 10", 12" Available in Single, Double or Triple Notch
- Unlimited tie length available
Three Hole Wall Ties
Specifications of Wall ties:
- 4" - 6" Single Notch only 6" - 8" Single or Double Notch
- 8" - 10" Available in Single, Double or Triple Notch
- Additional sizes - Single or Double Notch only Pin ONLY at shortest length (ex: DO NOT USE an 8" - 10" tie as a 10" tie)
- Unlimited tie length available
Products
- Centering Sheets
- Formwork Systems
- Wall Formwork
- Wall Tie
- Column Box
- Column Box on Rent
- Masonry Saw
- Locking Pin
Four Hole Combination Ties
Multi-dimensional ties are used when changing wall thickness.
Reusable Pull Ties
Designed without rod notches and break-offs so they can be easily removed from a wall and reused. This is designed for markets with very low labor costs. reusable pull ties. Maximum tie size is 8" Specify Nominal or Full
